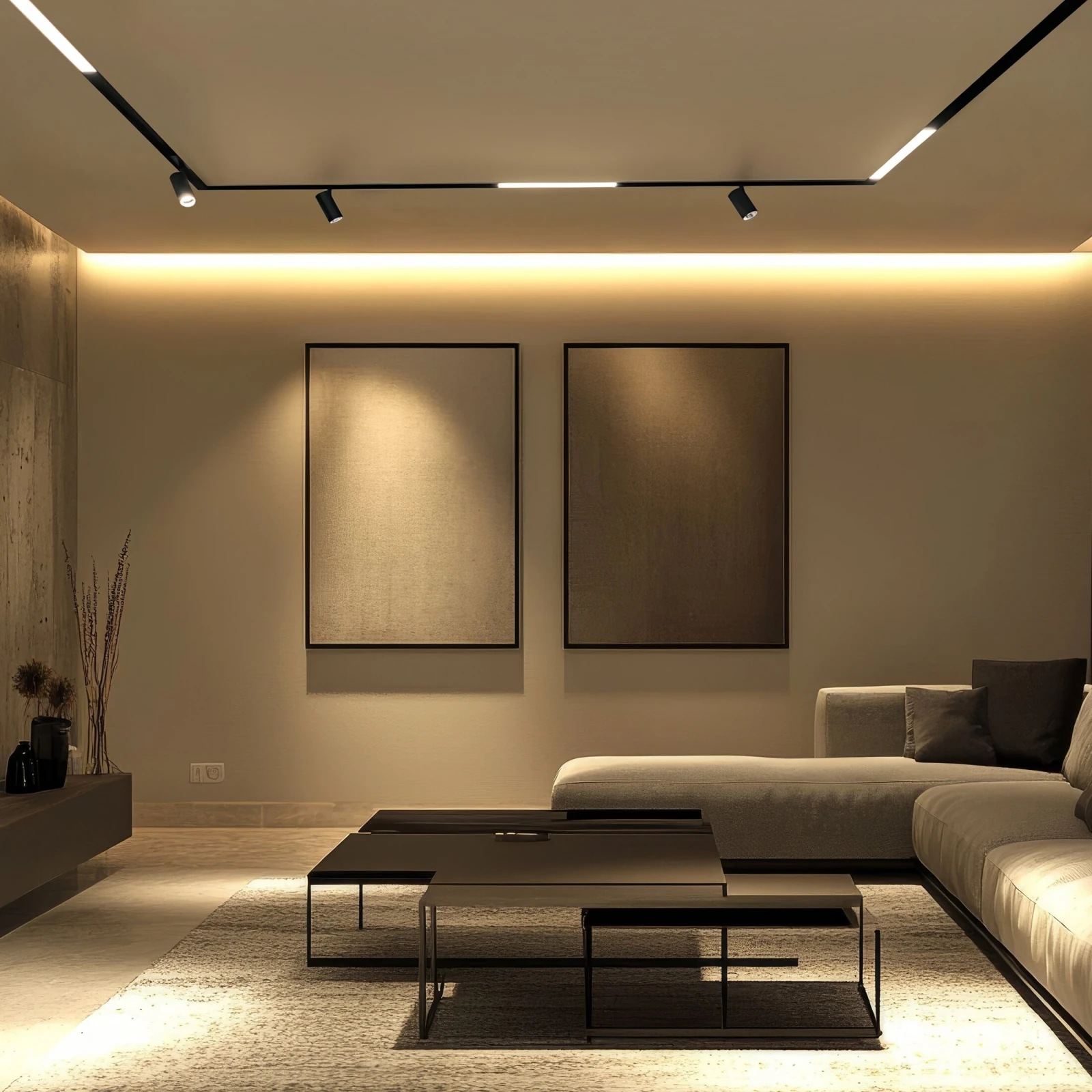

MAGNETIC EASY 48V Magnetic System Enlarge

Magnetic systems Magnetic system TK Lighting

MAGNETIC EASY 48V Magnetic System

48V DC
low voltage — needs a power supply
27 parts
6 rails · 6 luminaires
1–3 m
rail segments
Build this system All parts Luminaires from 39.25 €

This system's rails, luminaires and connectors only fit each other — parts of other systems will not fit.

MAGNETIC EASY 48V Magnetic System runs on 48V DC. The rail carries the power, and luminaires clip anywhere along it and can be moved later without rewiring. That is low voltage, so the system needs a driver rated above the total wattage of the luminaires. Rails come in fixed lengths (100 cm–300 cm), and a longer segment is made of several joined together. Mounting: surface and recessed.

  1. 1 A rail for the length Segments join up to the length you need
  2. 2 Luminaires on the rail How many and which — by the area to light
  3. 3 Power and connectors for the shape Chosen by luminaire load and rail shape

Rails 6

Rail sections — the length is made up of several.

Luminaires 7

Choose how many light modules you want and which ones.

Power supplies 6

This system needs a power supply.

Connectors 7

Needed only where the track turns a corner, a T or a cross.

End caps 2

Caps for the rail ends.

Suspension parts 1

Wires and holders for when the rail hangs rather than mounts to the ceiling.

What a complete system needs

  • rail — as many metres as the line is long
  • luminaires — as much light as the room needs
  • joints where the line turns or branches
  • a driver and a feed
  • end caps at the ends
  • a suspension kit when hung on wires

Frequently asked questions

What voltage is this system, and does it need a driver?

The system runs on 48V DC, so it will not work without a driver. The driver is sized from the total wattage of the luminaires with headroom — the configurator works that out for you.

How is this system mounted?

Its rails mount as follows: surface and recessed. You choose the mounting in the configurator, and both the rails and the accessories follow from it.

What lengths do this system's rails come in?

Rails come in fixed lengths: 100 cm–300 cm. A longer line is made of several rails joined with straight couplers, so the final length may come out slightly longer than planned.

Will luminaires from another system fit?

No. This system's rail profile and contacts are its own, so a luminaire from another system will not physically fit. Every part of it sits on this page — rails, luminaires, joints and power.

How do I work out which parts I need?

In the configurator you give the mounting and the shape segment by segment and add luminaires — the rails, joints, end caps and power are worked out for you, and the quantities stay editable before the cart.
